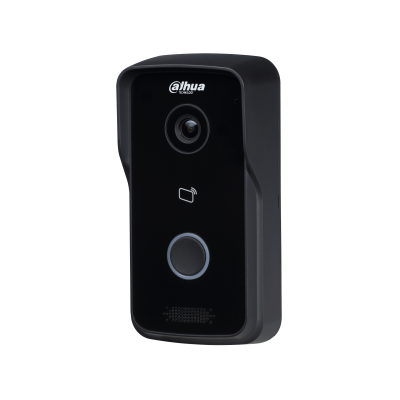

VTO2111D-P-S2/S3

System

Main Processor

Embedded processor

Operating System

Embedded LINUX operating system

Button Type

Mechanical

Interoperability

ONVIF

Internet Protocol

SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Baisc

Camera

1/4" 1MP CMOS high definition, low illumination/WDR, color/IR

Angle of View

Horizontal: 107°; vertical: 61°; diagonal: 122°

WDR

120dB

Noise Reduction

3D noise reduction

Video Compression

H.264

Video Resolution

Main stream: WVGA, 720P, D1

Sub stream: CIF, WVGA, QVGA, 1080P, D1

Frame Rate

PAL: 25 fps NTSC: 30 fps

Video Bit Rate

256K to 4M

Light Compensation

Auto IR

D/N

ICR auto switch

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way voice call

Audio Enhancement

Echo suppression and cancellation/digital noise reduction

Audio Bit Rate

16KHz, 16Bit

Function

Communication

Full digital

Unlock Mode

Card/App remote/indoor monitor unlock

Card Type

IC card

Motion Detection

Video motion detection

Auto Snapshot

Auto snapshot can only be enabled on indoor monitors

Leave Photos and Messages

Yes (Insert an SD card into the indoor monitor.)

Web Configuration

Yes

Performance

Card Reading Distance

3cm–5cm

Casing

PC+Acrylic

Capacity

Card

10,000

Port

RS-485

1

Electric Lock

1

Exit Button

1

Door Status Detection

1

Lock Control

1, normally closed by default

Network

1 10Mbps/100Mbps network port (8-core white ribbon cable)

Alarm

Tamper

Yes

General

Color

Black

Power Supply Mode

12V DC 1A
Standard PoE

Installation

Surface mount

Certifications

CE
FCC
UL

Accessory

Brackets and alarm ribbon cable

Dimensions

135mm×70.4mm×34.4mm (5.31"×2.77"×1.35")

Protection Grade

IP65 (silicone sealant is needed, see the quick start guide)

Operating Temperature

-30°C to +60°C (-20°F to +60°F )

Operating Humidity

10%RH–90%RH (non-condensing)

Operating Altitude

Beneath 3000 m (9842.52 ft)

Power Consumption

Standby≤1W, working≤5W

Gross Weight

326 g (0.72 lb)
