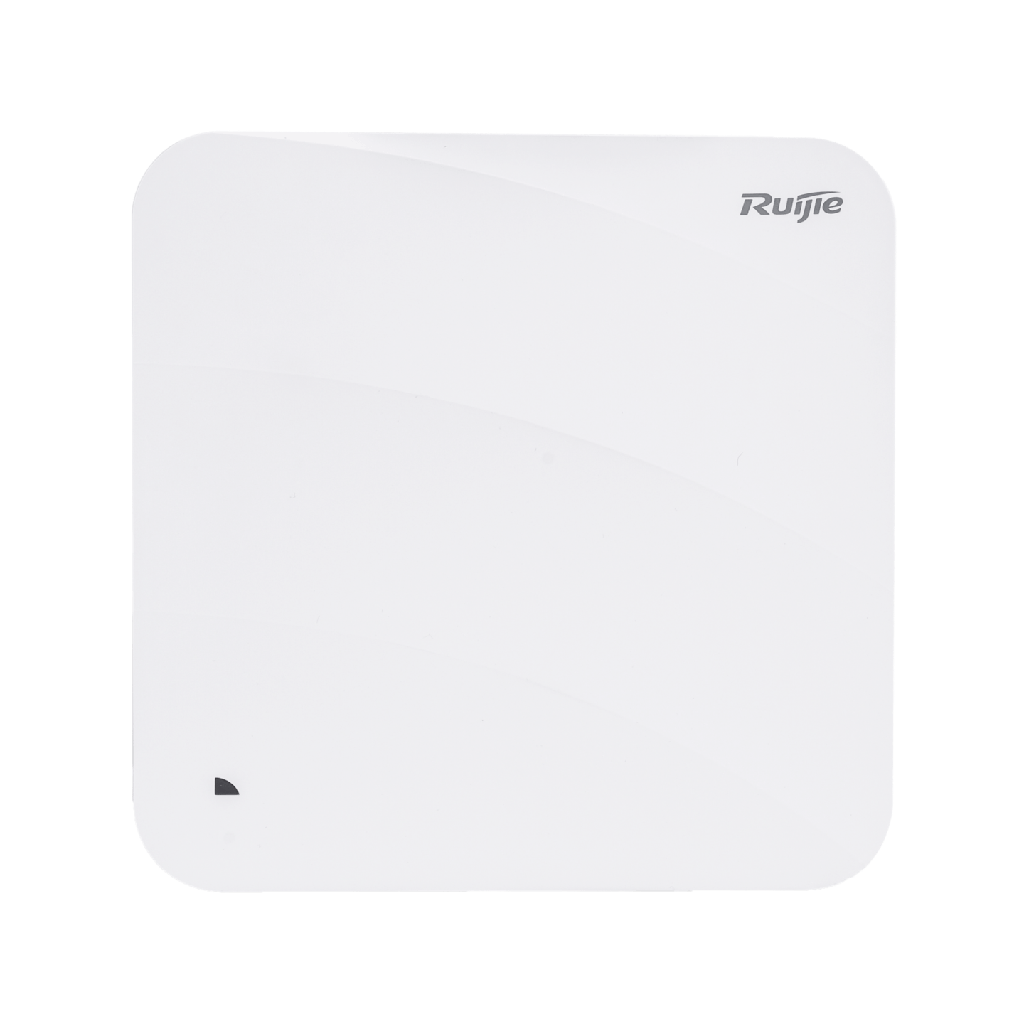

RG-AP810-L
Wi-Fi 6 Dual-Radio 1775 Mbps Indoor Access Point
Ruijie/Reyee
Reyee is a brand from enterprise manufacturer Ruijie. Reyee products are designed for small to medium business (SMB) and small office home office (SOHO) markets which are cost-effective without compromising on features. Products include wireless routers, access points and network switches with PoE options. All managed devices are compatible with Ruijie Cloud which allows users to configure and maintain Reyee network devices via the cloud for free.
Hardware Specifications
Dimensions and Weight | RG-AP810-L |
Unit dimensions(W x D x H) | 220 mm x 220 mm x 49 mm (8.66 in x 8.66 in x 1.93 in) |
Shipping dimensions(W x D x H) | 507 mm x 319 mm x 278 mm (19.96 in x 12.56 in x 10.94 in) |
Unit weight | Device: 0.6 kg (1.33 lbs) Mounting bracket: 0.07 kg (0.15 lbs) |
Shipping weight | 1.04 kg (2.29 lbs) |
Mounting | Wall/Ceiling-mount (A mounting bracket is delivered with the main unit) |
Lock option | Kensington lock and securing latch |
Wi-Fi Radio | RG-AP810-L |
Radio design | Dual-radio Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO |
Operating frequencies | Radio 1, 802.11b/g/n/ax: ● 2.400 GHz to 2.4835 GHz, ISM Radio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1 ● 5.250 GHz to 5.350 GHz, U-NII-2A ● 5.470 GHz to 5.725 GHz, U-NII-2C ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance. |
Data rates | Combined peak data rate: 1.775 Gbps 2.4 GHz radio, 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) 5 GHz radio, 1.201 Gbps ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to 2SS HE80 802.11ax client devices (typical) |
Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24 ,36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT80) ● 802.11ax: 8.6 to 1,200 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) |
Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
Antenna type | Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
Antenna gain | 2.4 GHz: 2 dBi 5 GHz: 4 dBi |
Maximum transmit power | 2.4 GHz radio: 26 dBm (23 dBm per chain) 5 GHz radio: 26 dBm (23 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
Thailand 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm 5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm |
Power increment | Configurable based on requirement |
Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
Modulation types | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
