NVR2008H-8MP

https://otwtech.com.au/web/image/product.template/4592/image_1920?unique=3e8723f

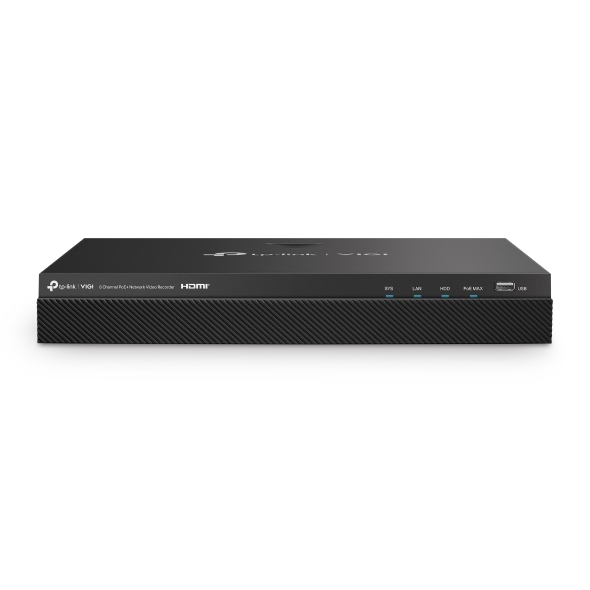

TPLINK VIGI 8 Channel PoE+ Network Video Recorder IPC 2 HDD Bay

You need to pass information authentication before you can see the product details.
TPLINK

TP-Link is a global provider of reliable networking devices and smart home products, consistently ranked as the world’s top provider of Wi-Fi devices. The company is committed to delivering innovative products that enhance people’s lives through faster, more reliable connectivity.

Network Video Recorders

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Video and Audio
IP Video Input8-Channel
Incoming Bandwidth160 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4/6/8/9
DECODING
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback8-Channel*2
Capability• 30fps:
4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP
Record Management
Record Mode• Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode• Regular Backup
• Video Clip Backup
Playback Function• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
NETWORK
ProtocolUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+), Safari (11+)
InteroperabilityONVIF Profile S, CGI
External Interface
Network Interface1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface1-ch RCA Input; 1-ch RCA Output
Alarm In/Out6/4
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI1
VGA1
HARD DISK
SATA2 SATA Interfaces
CapacityUp to 16 TB Capacity for Each HDD*3
PoE
Standard802.3at/af Compliant
Interface8, RJ-45 10/100 Mbps PoE+ Ports
PoE Budget90 W*1 Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Note: The alarm function requires the use of a camera.
Anomaly Alarm• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature-40℃ to 70 °C
Storage Humidity10%~90% RH Non-Condensing
Package Contents• VIGI Network Video Recorder
• Power Adapter
• Power Cable
• HDD Power Cables
• HDD Data Cables
• Mounting Accessories
• Mouse
• Quick Installation Guide
Working Temperature• NVR: -10℃ to 55 °C
• Power Adapter: 0℃ to 40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )13 × 11.2 × 1.8 in (330 × 285 × 45 mm)
Net Weight2.1 Kg*4
Gross Weight3.9 Kg*4
Power Supply53.5V DC/2.43A
Power Consumption• 8.5 W (Without Disk)
• 40 W (With Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI


Specifications

Brand TPLINK
