NVR1004H-4P

https://otwtech.com.au/web/image/product.template/4591/image_1920?unique=3e8723f

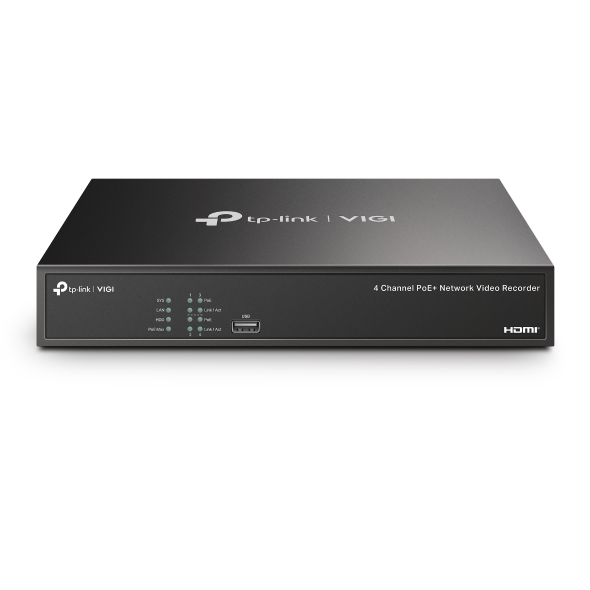

TPLINK VIGI 4 Channel PoE+ Network Video Recorder 1 HDD Bay

You need to pass information authentication before you can see the product details.
TPLINK

TP-Link is a global provider of reliable networking devices and smart home products, consistently ranked as the world’s top provider of Wi-Fi devices. The company is committed to delivering innovative products that enhance people’s lives through faster, more reliable connectivity.

Network Video Recorders

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Video and Audio
IP Video Input4-Channel
Incoming Bandwidth80 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4
DECODING
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback4-Channel
Capability• 25fps:
2-ch @ 8MP, 4-ch @ 4MP

• 30fps:
4-ch @ 4MP, 3-ch @ 5MP
Record Management
Record Mode• Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode• Regular Backup
• Video Clip Backup
Playback Function• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
NETWORK
ProtocolUPnP (Plug and Play), NTP (Network Timing)
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF, CGI
External Interface
Network Interface1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface1, Audio In; 1, Audio Out
Alarm In/OutN/A
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATAN/A
HDMI1
VGA1
HARD DISK
SATA1 SATA Interface
Capacity• Up to 10 TB Capacity for Each HDD
• 1 × 2TB HDD Preinstalled
PoE
Standard802.3at/af Compliant
Interface1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget53 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Note: The alarm function requires the use of a camera.
Anomaly Alarm• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Package Contents• VIGI Network Video Recorder
• Power Adapter
• Power Cables
• Rubber Feet
• Mouse
• Quick Installation Guide
Working Temperature• NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )246.2 × 148.2 × 45 mm
Power Supply53.5V DC/1.31A
Power Consumption• 4.25 W (Without Disk)
• 13.10 W (With Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI


Specifications

Brand TPLINK
