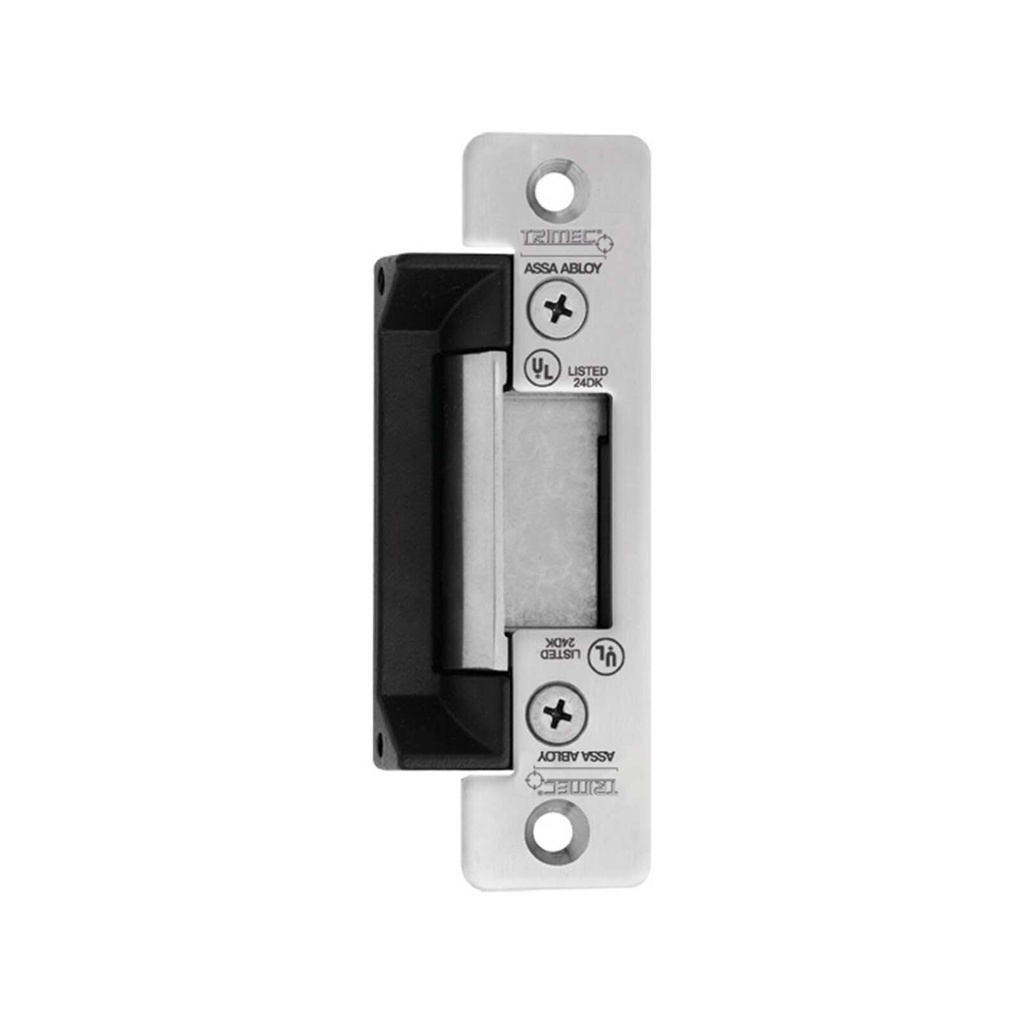

Trimec ES110 Series Electric Strike

Voltage
12Vdc & 24Vdc

Current
250 mA @ 12Vdc - 125mA @ 24Vdc

Solenoid
Solenoids are rated for continuous use.

Monitoring
None

Holding Force
680 kg Static Strength Rating

Endurance
Cycle tested to 1,000,000 operations

Environment
Operational temperature range -20°C to + 60°C
Weather resistant construction Standard. (IP56)

Body
Cast Aluminium Construction

Keeper
Stainless Steel

Latch
Suitable for 18mm latchbolt with 3mm door gap

Specification Statement
Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either "Power to Lock" or "Power to Open" on site. The electric strike should not consume current greater than 250 mA @ 12Vdc - 125mA @ 24Vdc and have a solenoid suitable for continuous use. The strike should have a minimum holding force of 680kg, and an endurance rating of 1 million cycles.

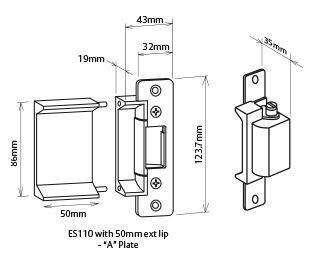

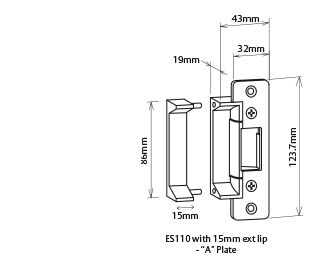

Dimensions
